PLASTIC MOULD STEEL P20

P20 Steel Plate Material is an adaptable, low-composite tool steel that is described by great durability at moderate quality levels. The extraordinary reason mold steel P20 steel plate is usually utilized for plastic infusion mold holes and tooling and die casting dies for zinc.

P20 mold steel plate material is commonly sold in the pre-hardened condition at a hardness of roughly 300 HBW.P20 tool steels are nitrided or carburized.

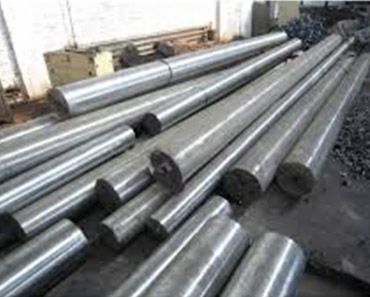

These P20 mold steel materials steels are fit for being machined into complex and large dies and molds. Material P20 steel plate and round bars are mostly utilized as a part of the carburized condition. The presence of chromium and nickel enhances the toughness and hardness of mold steel P20 grade material.



Chemical Composition


Element
Min
Max
Carbon, C0.28 0.4
Manganese, Mn 0.61
Silicon, Si0.20.8
Molybdenum, Mo0.30.55
Chromium,Cr1.4 2
S- 0.03
P-0.03

Physical Properties


Properties
Metric
Imperial
Density7.85 g/cc0.284 lb/in3

Mechanical Properties


Properties
Metric
Imperial
Hardness, Brinell (typical)300 33
Hardness, Rockwell C (typical) 30 30
Tensile strength, ultimate965-1030 MPa 140000-150000 psi
Tensile strength, yield
827-862 MPa120000-125000 psi

Elongation at break (in 50 mm (2"))20.0% 20.0%
Compressive strength862 MPa125000 psi
Charpy impact (V-Notch)27.1-33.9 J20.0-25.0 ft-lb
Poisson's ratio0.27-0.300.27-0.30
Elastic modulus190-210 GPa27557-30457 ksi

Thermal Properties


Properties

Conditions
T (°C) Treatment
Thermal expansion 12.8 x 10-6/ºC20-425


Features


   Heat Treatment

   Forging

   Annealing

   Welding

   Forming

   Hardening

   Cold Working
