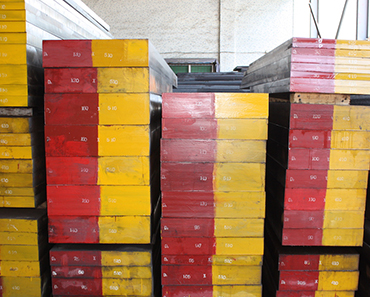

COLD WORK TOOL STEEL D2

Cold Work D2 tool steel is a high carbon, high chromium device steel (12% chrome) with amazingly high wear opposing properties, heat treatable to 60-62 Rc.

D2 steel is extremely wear safe yet not as intense as lower alloyed steels. D2 tool steel solidifies in air with a low request of development and offers a measure of erosion resistance when cleaned.


The high percentage of chromium gives it mild corrosion-resisting properties in the hardened condition.The mechanical properties of D2 are exceptionally sensitive to heat treatment. D2 steel is accessible in de-carb free adjusts, pads, and squares, and also ground flat stock and drill rod.



Chemical Composition


Element
Min
Max
Carbon, C1.55 1.75
Manganese, Mn 0.200.40
Silicon, Si0.250.40
Molybdenum, Mo0.500.70
Chromium,Cr11.00 12.00
W0.40 0.60
Vanadium, V0.100.50
Co----

Physical Properties


Properties
Metric
Imperial
Density7.7 x 1000 kg/m30.278 lb/in3
Melting point1421°C2590°F

Mechanical Properties


Mechanical Properties
Metric
Imperial
Hardness, Knoop (converted from Rockwell C hardness)769769
Hardness, Rockwell C6262
Hardness, Vickers748748
Izod impact unnotched77.0 J56.8 ft-lb
Poisson's ratio0.27-0.300.27-0.30
Elastic modulus190-210 GPa27557-30457 ksi

Thermal Properties


Properties

Conditions

T (°C)Treatment
Thermal expansion10.4 x 10 -6 /ºC20-100-


Features


   Heat Treatment

   Forging

   Annealing

   Martempering

   Final Grinding

   Hardening

   Stress Relieving
