CASE HARDENING STEEL 16MnCr5

16Mncr5 grade is a low alloy chromium, manganese case solidifying steel. Carburised 16MnCr5 gives a hard case with a solid center whilst holding a level of durability.

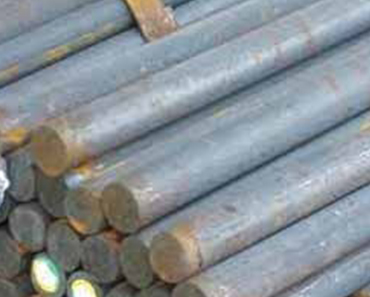

It is suited for applications which require a blend of toughness and wear resistance and is commonly supplied in round bar.It can be used in higher stressed components like gears, shafts, crankshafts, connecting rods, cam shafts, etc.




Chemical Composition


Element
Min
Max
Carbon, C0.14 0.19
Manganese, Mn1.00 1.03
Silicon, Si0.100.35
Nickel, Ni----
Molybdenum, Mo----
Chromium,Cr0.80 1.10
Sulfur, S-.--0.05
Phosphorous, P-.--0.05

Mechanical Properties


Heat treatment state
Diameter(mm)
Rm (Mpa)
QUENCHED AND TEMPERED16 max1000 min
QUENCHED AND TEMPERED16-40900 min
QUENCHED AND TEMPERED40-100700 min

Equivalent grades of grade 16MnCr5


Inclusion Rating
A 1.5/ 0.5, B C D 1.511.0, E 45 A
Grain SizeFine grain size - ASTM No. 6-8
Decarburization & Surface Imperfections1 % of size max.
MicrostructurePearite+Fenite


Features


   Heat Treatment

   Hardenability

   Soft Annealing

   Intermediate Annealing

   Normalizing

   Carburizing

   Core Hardening

   Tempering

   Forging

   Machinability
