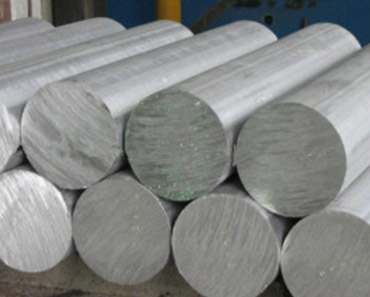

HOT WORK TOOL STEEL H21
HOT WORK TOOL STEEL H21
H21 Steel is a hot work tool steel for oil or air setting to develop high hot quality, support of hardness, and warmth checking resistance. These are tungsten hot-work steels which are of different types, namely, H21 to H26 types. These steels have similar characteristics to that of high-speed steels.
Thermal shock resistance and toughness of these steels can be improved by reducing the carbon content.
This is mostly utilized in hot work gadgets, instruments for production of hollows, screws, bolts, stray pieces. Die casting tools, forming dies, die inserts, hot shear blades.
Element | Min | Max |
---|---|---|
Carbon, C | 0.25 | 035 |
Manganese, Mn | -.-- | 0.60 |
Silicon, Si | -.-- | 0.40 |
Molybdenum, Mo | -- | -- |
Chromium,Cr | 2.00 | 3.00 |
W | 9.00 | 10.00 |
V | 0.30 | 0.50 |
Co | -- | -- |
Properties | Metric | Imperial |
---|---|---|
Density | 8.19 g/cm 3 | 0.296 lb/in 3 |
Melting point | 1432°C | 2610°F |
Properties | Metric | Imperial |
---|---|---|
Hardness, Rockwell C | 40.0 - 55.0 | 40.0 - 55.0 |
Bulk modulus | 140 GPa | 20300 ksi |
Shear modulus | 80.0 GPa | 11600 ksi |
Poisson's ratio (25°C) | 0.27-0.30 | 0.27-0.30 |
Elastic modulus | 190-210 GPa | 27557-30458 ksi |
Properties | Metric | Imperial |
---|---|---|
CTE, linear | 12.4 μm/m°C | 6.89 μin/in°F |
Thermal conductivity | 27.0 W/mK | 187 BTU-in/hr-ft 2 °F |
Heat Treatment
Forging
Annealing
Cold Working
Forming
Hardening
Machinability
